BWT Mini heat pump
The compact solution with simple operation and convincing performance
Product number: 125500854
slide 2 of 3
This article is currently only available on request.
- PRACTICAL & COMPACT: Small heat pump with small footprint, user-friendly and easy operation, simply connects to the house power
- HEATING PERFORMANCE: Max. Heat output 3.5 kW, ideal for above ground pools and spas between 2 and 15 m³
- HIGH QUALITY COOLANT: Environmentally friendly & efficient R32 coolant
Description
The mini heat pump from BWT is ideal for heating smaller above-ground pools with a water content of up to 15 m³. The heat pump is particularly compact and easy to operate. This allows the pool water to be tempered as desired and the bathing season to be extended.
Installation and commissioning
Installation is completed in just a few minutes - the mini heat pump is supplied ready to plug in and can be connected directly to the house electricity. On the water side, the heat pump is simply mounted between the sand filter system and the inlet nozzle.
Once it has been successfully installed, the heat pump can go straight into operation. Operation is intuitive and particularly easy to understand. The desired temperature can be easily set via the display after switching on the heat pump. The pump then starts to heat the pool.
Technical details
| App control: | No |
|---|---|
| COP at 100 % of nominal power (at 15 °C air and 26 °C water): | 4,1 |
| COP at 100 % of nominal power (at 26 °C air and 26 °C water): | 5,5 |
| Connection: | 32 |
| Coolant: | R 32 |
| Dimensions in mm (w x h x d): | 310 x 357 x 375 mm, 412 x 367 x 425 mm |
| Heating capacity in kW (15 °C air & 26 °C water): | 2.4 |
| Heating capacity in kW (26 °C air & 26 °C water): | 3.5 |
| Housing: | Metal |
| Inverter technology: | No |
| Modes: | On/Off |
| Operating temperature: | 10 - 43 °C |
| Power supply: | 220 - 240 V / 1ph / 50Hz |
| Pump connections: | 32 - 38 mm |
| Recommended flow rate: | 1.5 - 2 m³/h |
| Recommended swimming pool volume: | 2 - 15 m³ |
| Thermal electrical protection: | 5 A |
| Type of heat exchanger: | Helical titanium heat exchanger |
| Weight: | 24 kg |

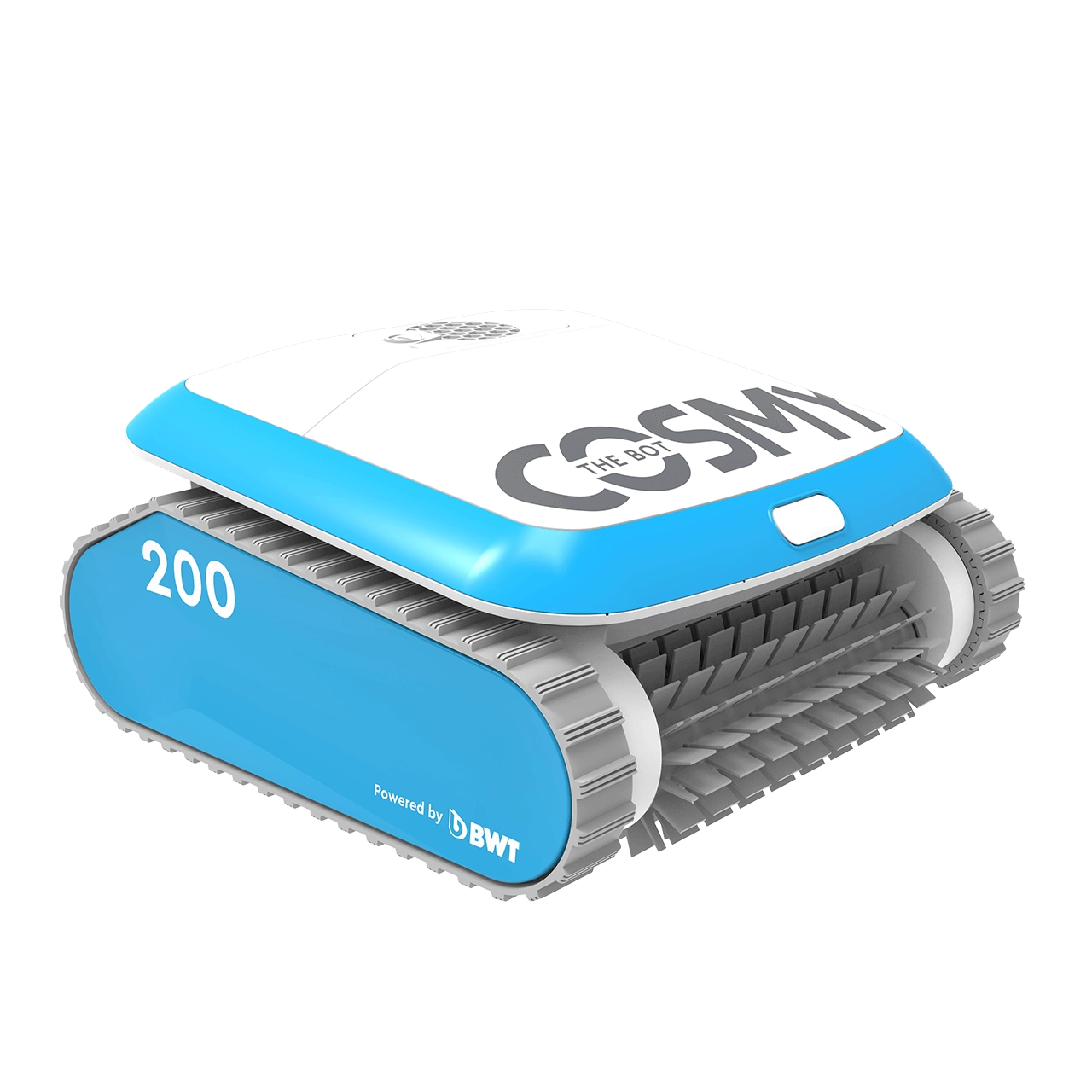

Pool robots
