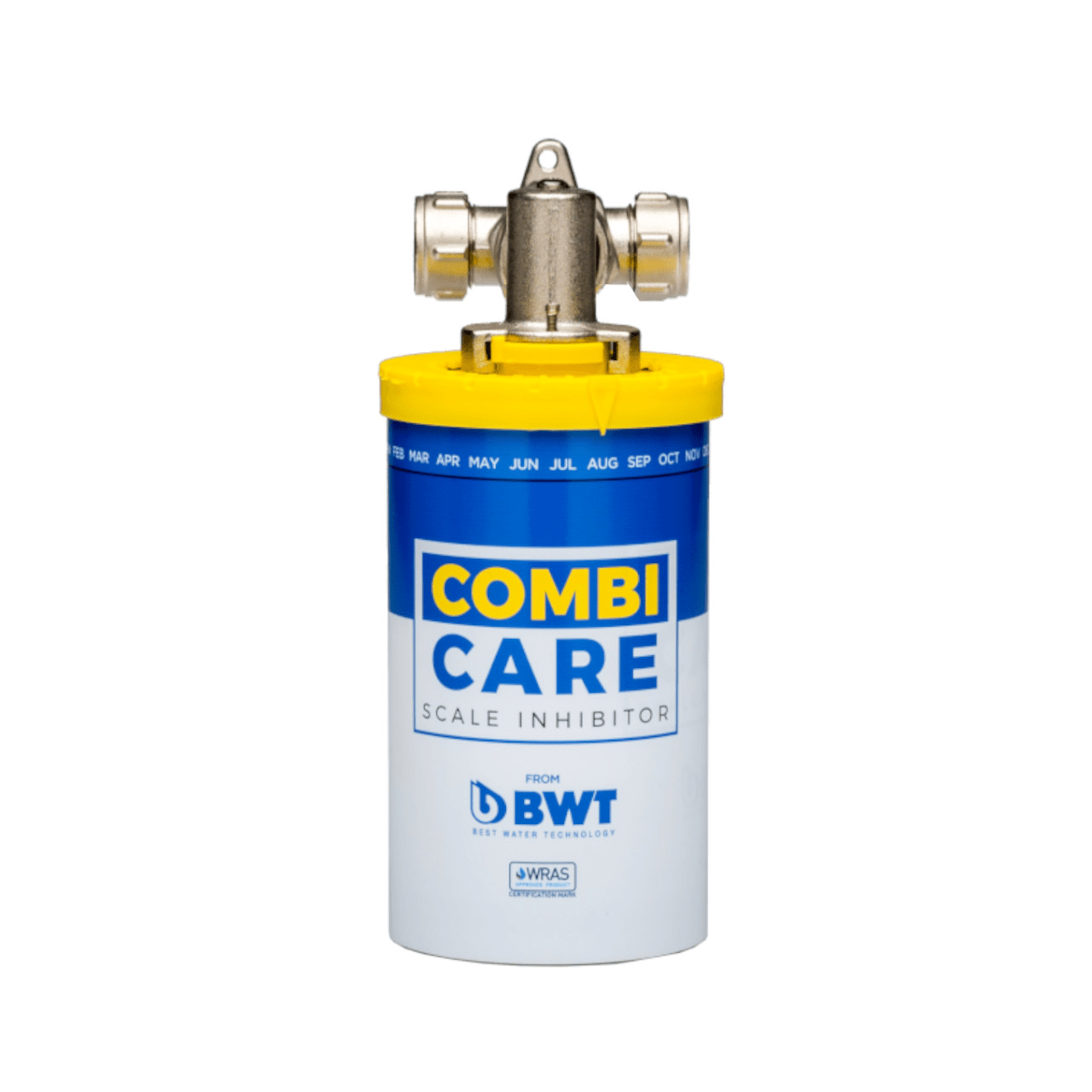

BWT's Combi-Care works by introducing a small amount of food grade Polyphosphate into the water feed, sequestering the calcium in the water and preventing it from forming scale on the heat exchanger. Suitable for 15mm pipe and supplied with 15mm compression fittings.
Max working temperature 30 c. Please note: These units will be affected by hot water transfer back down the system, therefore, they must be installed as far away from the boiler as possible (minimum 1m). Do not install where ambient temperature is likely to exceed 35c. Notes: Please do not over tighten fitting or use a pipe wrench on body. Unit must be adequately supported on both sides of the installation and correctly aligned to avoid stress to the unit or joint. Protect form freezing.
Easy installation - Compression fittings supplied
Can be installed using traditional tools: pipe cutter and two suitable wrenches, on to horizontal or vertical pipework.
Food Grade - Polyphosphate
Drinking water remains safe to drink even after treatment.
Protects central heating boilers
WRAS Approved the BWT Combi Care is ideal for protecting the secondary heating circuit in boilers in accordance with Part L.
12 Month cartridge life
Built in cartridge life indicator is the prefect reminder for the cartridge to be changed as part of the boilers annual service.
Contents:
Please register your product either online or by calling 01494 838100
BWT Combi-Care Installation & Service Instructions | PDF, 2 Mb | Downloads |
BWT Quality
Model Number | AC002200 |
---|---|
Maximum Flow Rate (l/s) | 0,9 |
Max Ambient Temperature 0c | 35 |
Pipe Size (mm) | 22 |
Maximum Pressure (Bar) | 5 |
Replacement Cartridge | AC002400 |
Max water Temperature °C | 30 |
Dimensions L x W x H (mm) | 120 x 120 x 215 |
Fitting Type | Compression |
