Water Treatment System for larger Dental Clinics
Planmeca ClinicPatrol™ by BWT – for units & autoclaves
Get in touch- Combined clean water supply
- System with an air gap of 20 mm
- APP - easy check and filter change
- Build-in flushing function
Product Details
Technical Details
Downloads

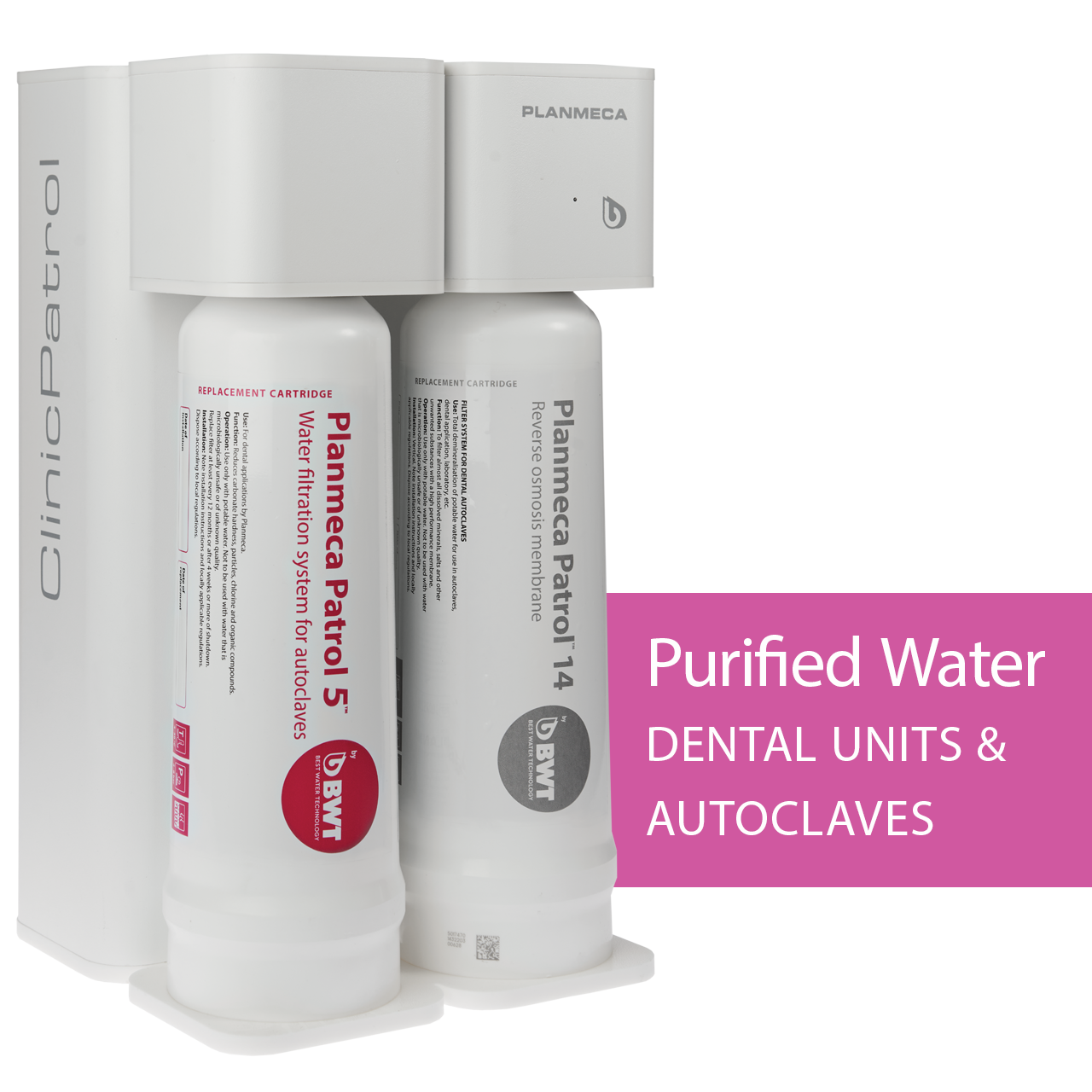

Planmeca ClinicPatrol™ by BWT
Water treatment system for larger Clinics
Planmeca ClinicPatrol™ by BWT is a water treatment system used in larger clinics with several units and autoclaves,
and it can be used as a combined clean water supply for both units and autoclaves.
With one convenient system, you can avoid having several separate filters in your clinic.
Note that there are different installation setup depending on whether you want the system to deliver clean water to autoclaves, or whether the system is to deliver clean water to both autoclaves and units.

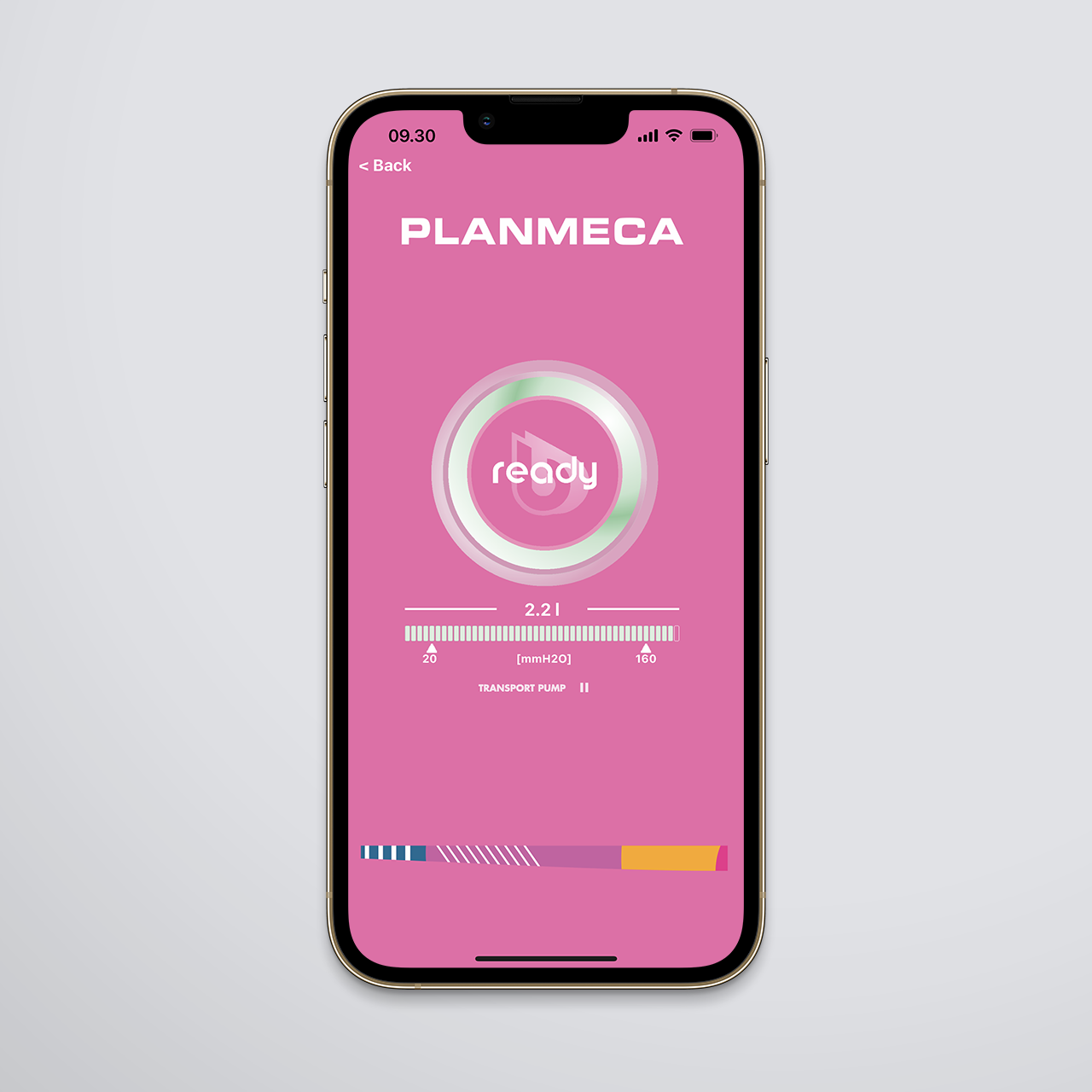

The practical Planmeca ClinicPatrol™ by BWT mobile application* provides an easy way to check the need for filter change and
monitor operating hours and flows parameters – also remotely – to guarantee trouble-free operation.
*For IOS systems only
Planmeca ClinicPatrol by BWT
| Type | RO Water System |
| Electrical connection / fuse | 220-240 V / 50-60 Hz / 10A |
| Internal fuse | T1.25AL250V |
| Mains supply voltage fluctuation | max. ± 10 % of the nominal voltage |
| Overvoltage category | II |
| Electrical power consumption (operation/standby) |
200 W / < 3 W |
| Plug standard (grounded PE mains plug) |
IEC-320 socket |
| Protection class |
IP21 |
| Water connection inlet | 3/4" external thread |
| Water connection outlet (demineralised water) |
3/8" external thread |
| Water connection for concentrate | 8 mm connector |
| Water connectionfor external tank | 8 mm connector |
| Dimensions: Width, Depth, Height (WxDxH)) |
277 x 297 x 505 mm |
| Weight, dry (kg) | 19 |
| Weight, wet (kg) | 22,6 |
| Use | For indoor use only |
| Max. operation altitude | 2000 m |
| Relative humidity | Max. 80 % for T < 31°C decreasing linearly to 50 % at T = 40 °C |
| Pollution degree | 2 |
Downloads
 |
Brochure - Planmeca ClinicPatrol by BWT | PDF, 1409 Kb | Downloads |
|
|
Certificate for Planmeca ClinicPatrol by BWT | PDF, 3 Mb | Downloads |
Product Details
Planmeca ClinicPatrol™ by BWT
Water treatment system for larger Clinics
Planmeca ClinicPatrol™ by BWT is a water treatment system used in larger clinics with several units and autoclaves,
and it can be used as a combined clean water supply for both units and autoclaves.
With one convenient system, you can avoid having several separate filters in your clinic.
Note that there are different installation setup depending on whether you want the system to deliver clean water to autoclaves, or whether the system is to deliver clean water to both autoclaves and units.
The practical Planmeca ClinicPatrol™ by BWT mobile application* provides an easy way to check the need for filter change and
monitor operating hours and flows parameters – also remotely – to guarantee trouble-free operation.
*For IOS systems only
Technical Details
Planmeca ClinicPatrol by BWT
| Type | RO Water System |
| Electrical connection / fuse | 220-240 V / 50-60 Hz / 10A |
| Internal fuse | T1.25AL250V |
| Mains supply voltage fluctuation | max. ± 10 % of the nominal voltage |
| Overvoltage category | II |
| Electrical power consumption (operation/standby) |
200 W / < 3 W |
| Plug standard (grounded PE mains plug) |
IEC-320 socket |
| Protection class |
IP21 |
| Water connection inlet | 3/4" external thread |
| Water connection outlet (demineralised water) |
3/8" external thread |
| Water connection for concentrate | 8 mm connector |
| Water connectionfor external tank | 8 mm connector |
| Dimensions: Width, Depth, Height (WxDxH)) |
277 x 297 x 505 mm |
| Weight, dry (kg) | 19 |
| Weight, wet (kg) | 22,6 |
| Use | For indoor use only |
| Max. operation altitude | 2000 m |
| Relative humidity | Max. 80 % for T < 31°C decreasing linearly to 50 % at T = 40 °C |
| Pollution degree | 2 |
Downloads
Downloads
|
|
Brochure - Planmeca ClinicPatrol by BWT | PDF, 1409 Kb | Downloads |
|
|
Certificate for Planmeca ClinicPatrol by BWT | PDF, 3 Mb | Downloads |
Installation and instructional films
Planmeca ClinicPatrol by BWT
for autoclaves and units
Video: Learn how to install Water Treatment System for autoclaves.
Video: Learn how to install Water Treatment System for both autoclaves and units.
Video: Learn how to change and replace both filter and membrane.
