Planmeca Patrol™ 5 and 10 by BWT
Planmeca Patrol™ 5 + 10 by BWT – filters designed for all types of autoclaves
Get in touch- 5-step filter – ensures very low conductivity
- Food grade approved
- Contains no silver ions
- Removes silicon/silica
- Legally required check valve integrated in the filter head
Product Details
Technical Details
Downloads

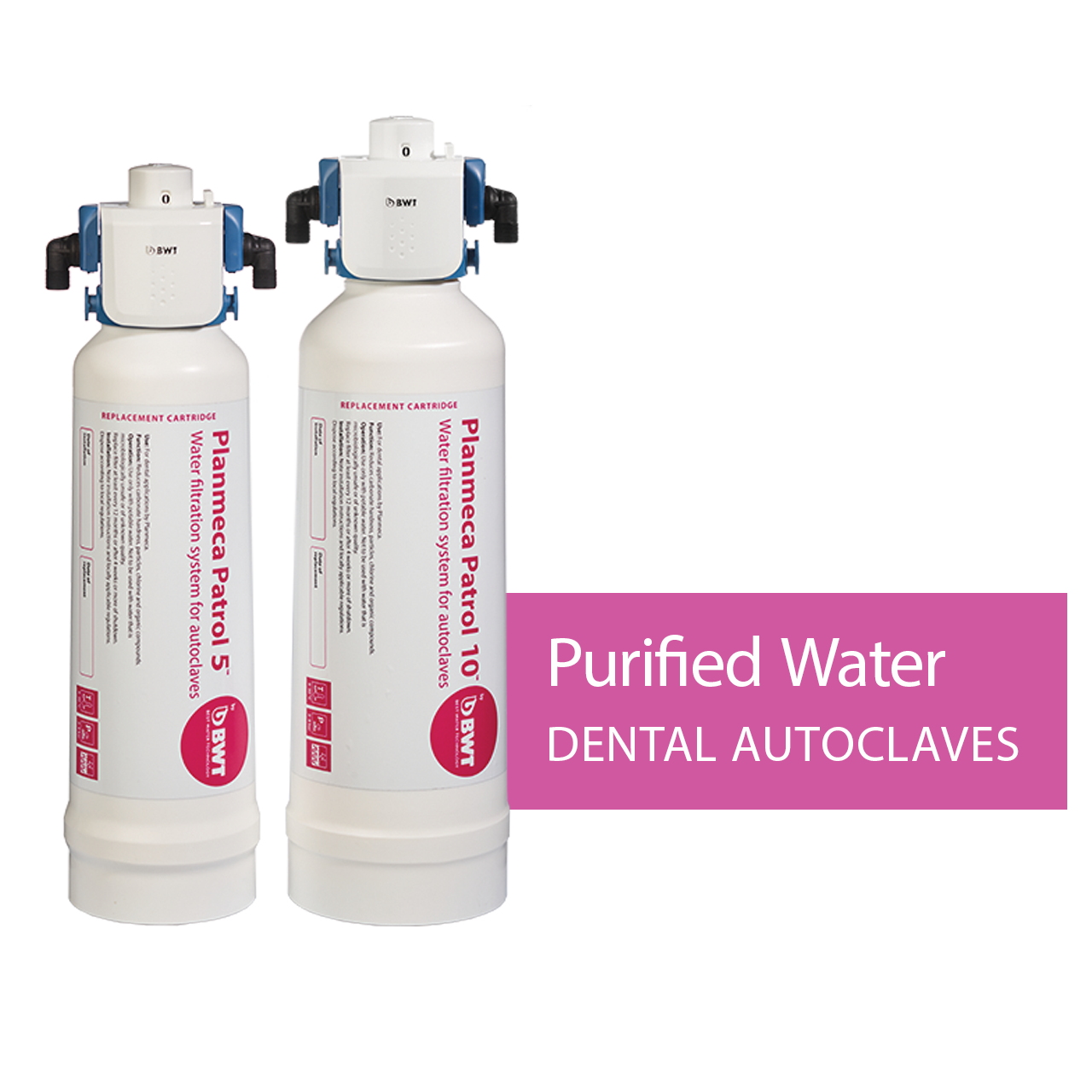

Planmeca Patrol™ 5 and 10 by BWT
Water filter system for all types of autoclaves
Planmeca PatrolTM 5 and Planmeca PatrolTM 10 filters by BWT are water filtration systems designed for all types of autoclaves. They ensure very low water conductivity and keep unwanted particles away from autoclaves.
80 % of technical issues in autoclaves can be attributed to poor water quality. Filtered water will help to ensure trouble-free operation of your autoclaves.
The Planmeca PatrolTM by BWT filters requires very little space and can be replaced without tools. The difference between the two filter sizes is their capacity between filter changes. The larger the filter, the fewer the filter change.
Planmeca PatrolTM 5 and Planmeca PatrolTM 10
| Type | Filter – Water System |
| SIZE | Planmeca PatrolTM 5 |
| Water connection inlet | 3/8" |
| Water connection outlet | 3/8" |

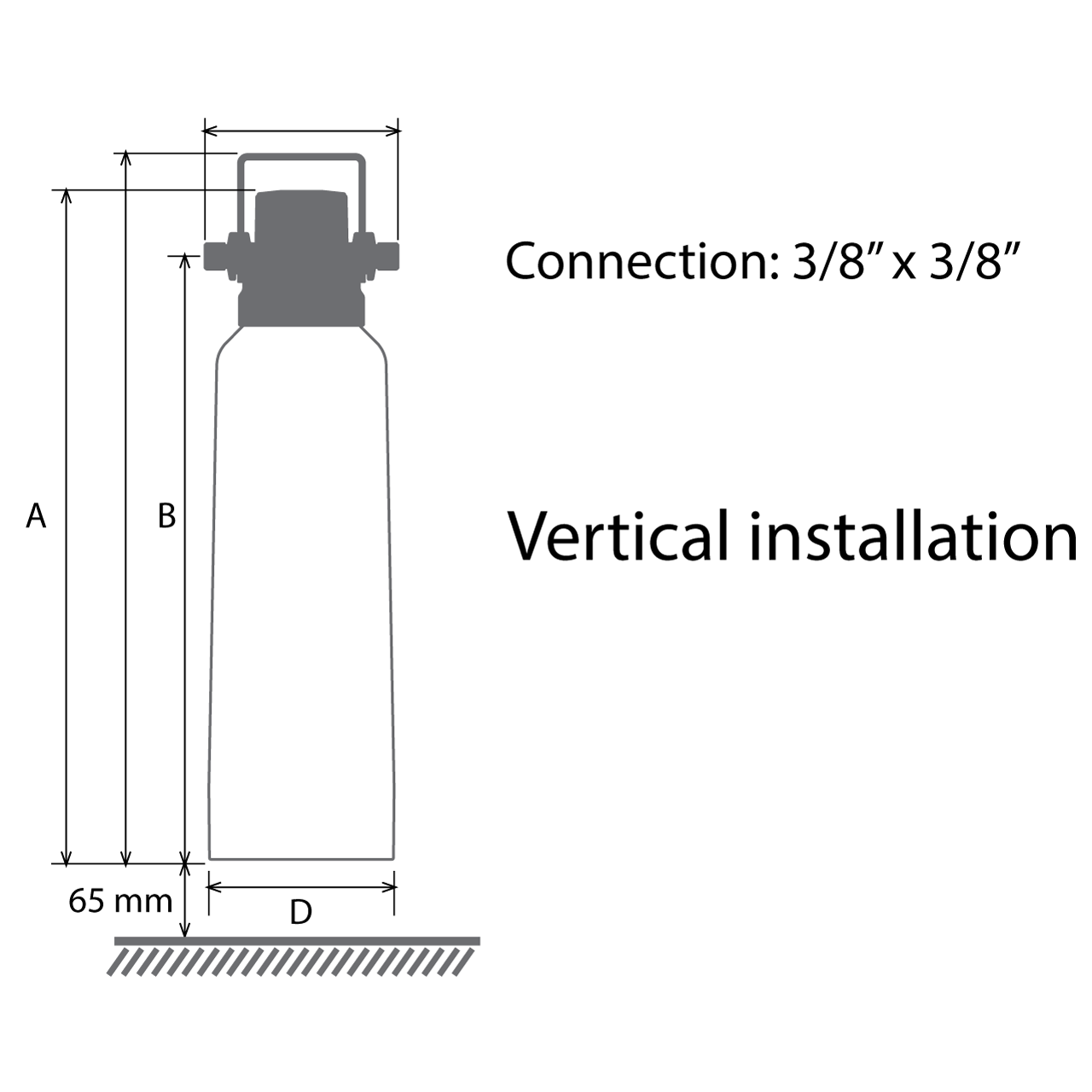

| Connection height (B) in mm | 421 |
| Filter Cartridge (D) - diameter / mm | 130 |
| Weight in kg (dry / wet) | 2.4 / 4.2 |
| Volume flow max. in l/h |
100 |
| SETTINGS AND CAPACITIES /l1 | |
| Conductivity of demineralized water | Planmeca PatrolTM 5 |
| <5qS/CM | 160 l |
| SIZE | Planmeca PatrolTM 10 |
| Water connection inlet | 3/8" |
| Water connection outlet | 3/8" |
| Connection height (B) in mm | 448 |
| Filter Cartridge (D) - diameter / mm | 147 |
| Weight in kg (dry / wet) | 3.9 / 5.6 |
| Volume flow max. in l/h | 100 |
| SETTINGS AND CAPACITIES /l1 | |
| Conductivity of demineralized water | Planmeca PatrolTM 10 |
| <5qS/CM | 360 l |
1. Capacities may vary up to ±5% depending on the inlet local water quality to Planmeca PatrolTM 5 & 10 and volume flow, at a raw water conductance of 500 µS/cm. DIN 285. DIN EN 13060. Subject to change.
| OPERATING CONDITIONS | |
| Input pressure | 2-8 bar |
| Water temperature | 4 - 30 °C |
| Ambient temperature | 4 - 40 °C |
Downloads
 |
Planmeca Patrol 5 and 10 by BWT flyer | PDF, 680 Kb | Download |
