Water Treatment System for larger Dental Clinics

Planmeca ClinicPatrol™ by BWT – for units & autoclaves

Get in touch
  • Combined clean water supply
  • System with an air gap of 20 mm
  • APP - easy check og filter change
  • Build-in flushing function
smutvejen
Produktbeskrivelse
Teknisk data
Downloads

Plan­meca Clini­c­Pa­trol™ by BWT

Water treatment system for larger Clinics



Plan­meca Clini­c­Pa­trol™ by BWT is a water treat­ment system used in larger clinics with several units and auto­claves,
and it can be used as a combined clean water supply for both units and auto­claves.
With one conve­nient system, you can avoid having several sepa­rate filters in your clinic.

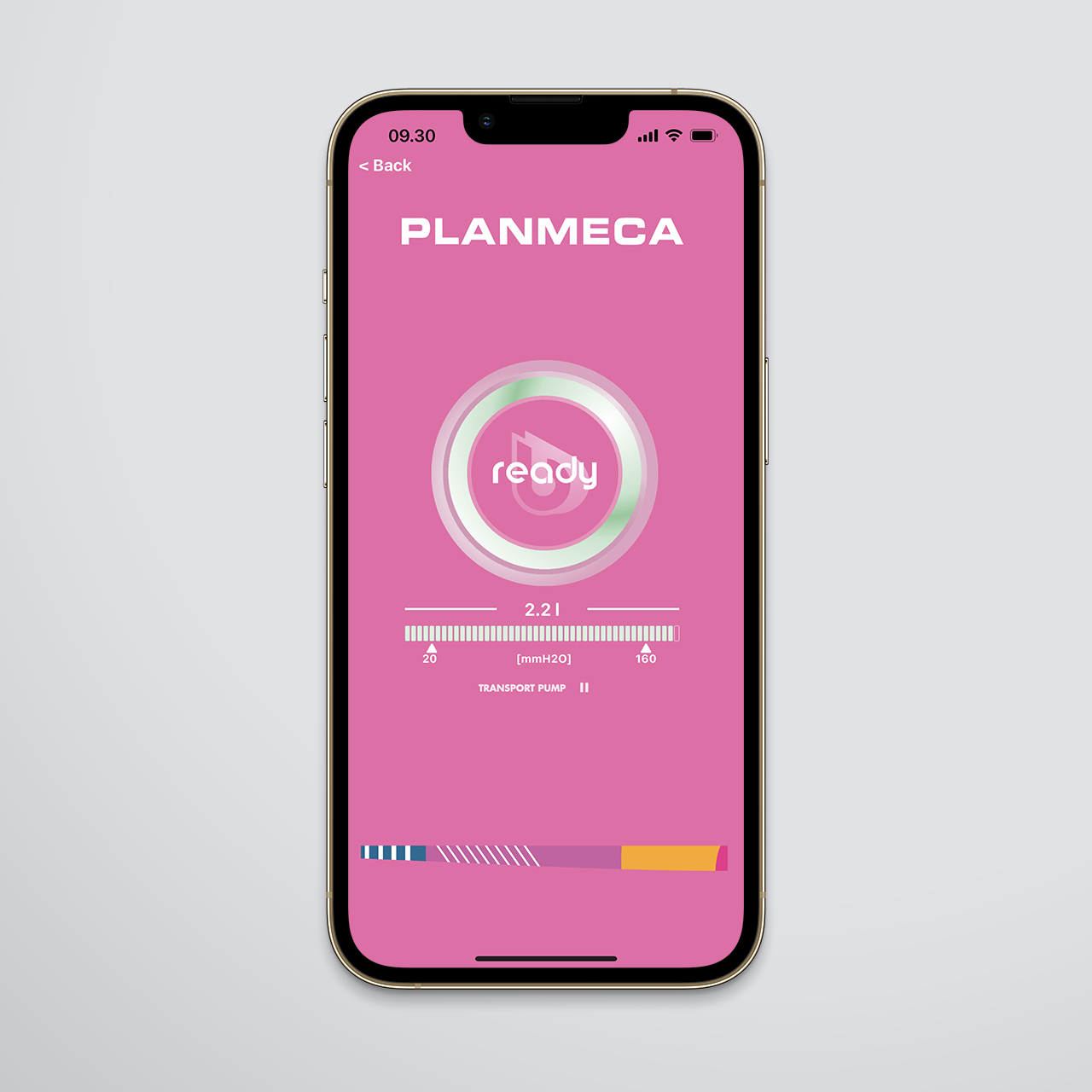

The practical Plan­meca Clini­c­Pa­trol™ by BWT mobile appli­ca­tion* provides an easy way to check the need for filter change and
monitor operating hours and flows para­me­ters – also remo­tely – to guarantee trouble-free opera­tion.



*For IOS systems only

Tekniske detaljer

Planmeca ClinicPatrol by BWT

 Type  RO Water System
 Electrical connection / fuse  220-240 V / 50-60 Hz / 10A
 Internal fuse  T1.25AL250V
 Mains supply voltage fluctuation  max. ± 10 % of the nominal voltage
 Overvoltage category  II
 Electrical power consumption
 (operation/standby)
 200 W / < 3 W
 Plug standard
 (grounded PE mains plug)
 IEC-320 socket
 Protection class
 IP21
 Water connection inlet  3/4" external thread
 Water connection outlet
 (demineralised water)
 3/8" external thread
 Water connection for concentrate  8 mm connector
 Water connectionfor external tank  8 mm connector
 Dimensions: Width, Depth, Height
 (WxDxH))
 277 x 297 x 505 mm
 Weight, dry (kg)  19
 Weight, wet (kg)  22,6
 Use  For indoor use only
 Max. operation altitude  2000 m
 Relative humidity  Max. 80 % for T < 31°C decreasing linearly to 50 % at T = 40 °C
 Pollution degree  2

Produktbeskrivelse

Plan­meca Clini­c­Pa­trol™ by BWT

Water treatment system for larger Clinics



Plan­meca Clini­c­Pa­trol™ by BWT is a water treat­ment system used in larger clinics with several units and auto­claves,
and it can be used as a combined clean water supply for both units and auto­claves.
With one conve­nient system, you can avoid having several sepa­rate filters in your clinic.

The practical Plan­meca Clini­c­Pa­trol™ by BWT mobile appli­ca­tion* provides an easy way to check the need for filter change and
monitor operating hours and flows para­me­ters – also remo­tely – to guarantee trouble-free opera­tion.



*For IOS systems only

Teknisk data

Tekniske detaljer

Planmeca ClinicPatrol by BWT

 Type  RO Water System
 Electrical connection / fuse  220-240 V / 50-60 Hz / 10A
 Internal fuse  T1.25AL250V
 Mains supply voltage fluctuation  max. ± 10 % of the nominal voltage
 Overvoltage category  II
 Electrical power consumption
 (operation/standby)
 200 W / < 3 W
 Plug standard
 (grounded PE mains plug)
 IEC-320 socket
 Protection class
 IP21
 Water connection inlet  3/4" external thread
 Water connection outlet
 (demineralised water)
 3/8" external thread
 Water connection for concentrate  8 mm connector
 Water connectionfor external tank  8 mm connector
 Dimensions: Width, Depth, Height
 (WxDxH))
 277 x 297 x 505 mm
 Weight, dry (kg)  19
 Weight, wet (kg)  22,6
 Use  For indoor use only
 Max. operation altitude  2000 m
 Relative humidity  Max. 80 % for T < 31°C decreasing linearly to 50 % at T = 40 °C
 Pollution degree  2

Installation and instructional films

for Planmeca ClinicPatrol by BWT

for autoclaves and units

step-by-step-video-installation-of-planmeca-clinicpatrol-by-bwt
step-by-step-video-installation-of-planmeca-clinicpatrol-by-bwt
Video: Learn how to install Water Treatment System.
step-by-step-video-installation-of-planmeca-clinicpatrol-by-bwt
step-by-step-video-installation-of-planmeca-clinicpatrol-by-bwt
Video: Learn how to install Water Treatment System for both autoclaves and units.
membrane-and-filter-replacement-planmeca-clinicpatrol-by-bwt
membrane-and-filter-replacement-planmeca-clinicpatrol-by-bwt

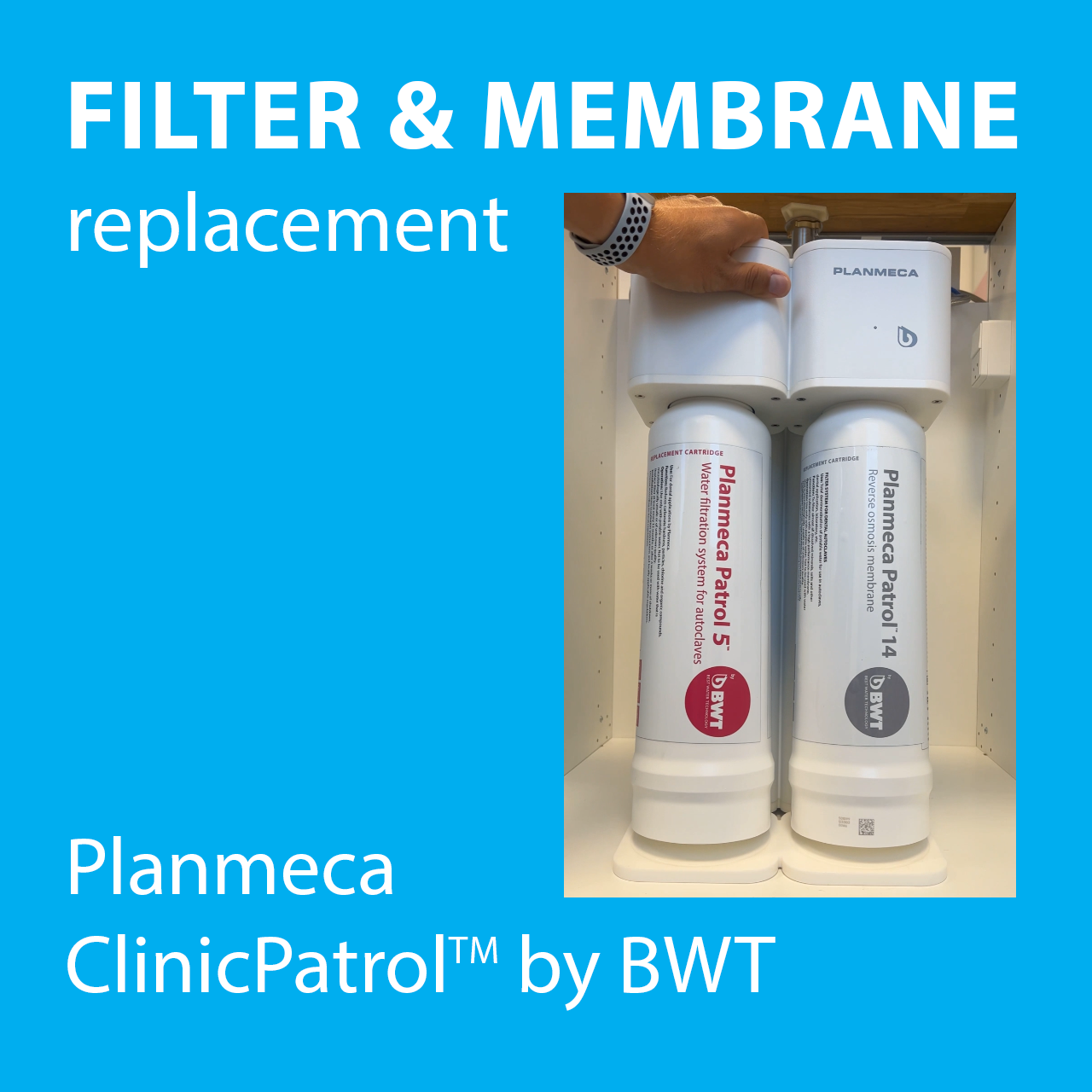

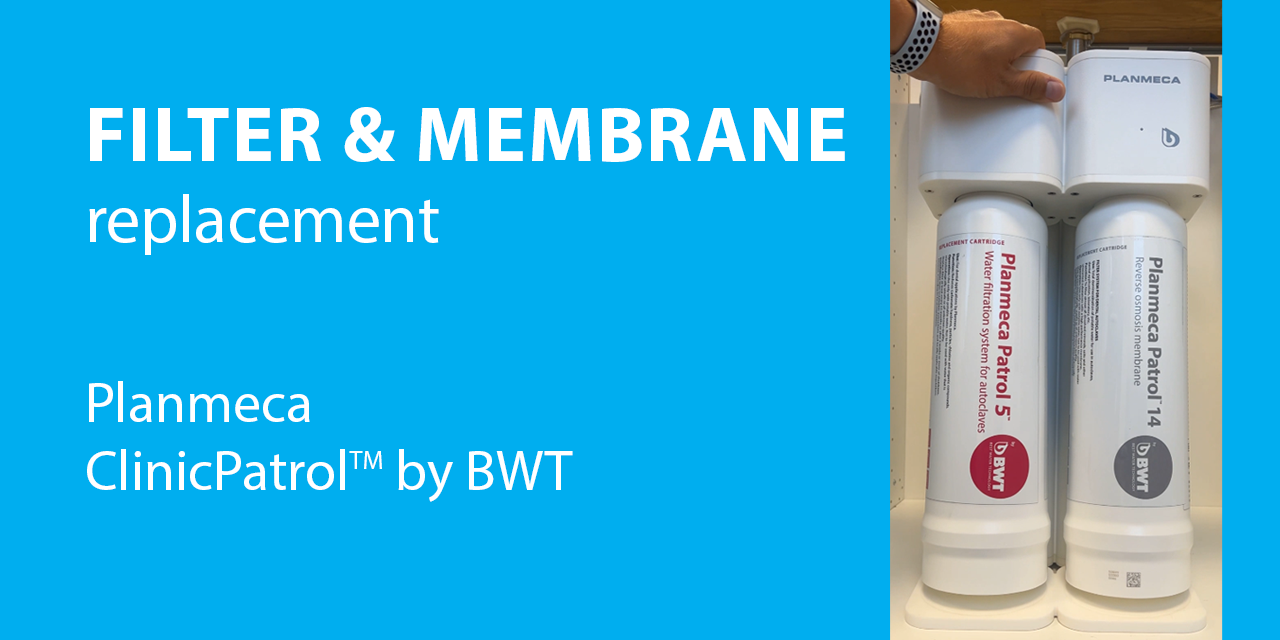

Video: Learn how to change and replace both filter and membrane.
